Minibend

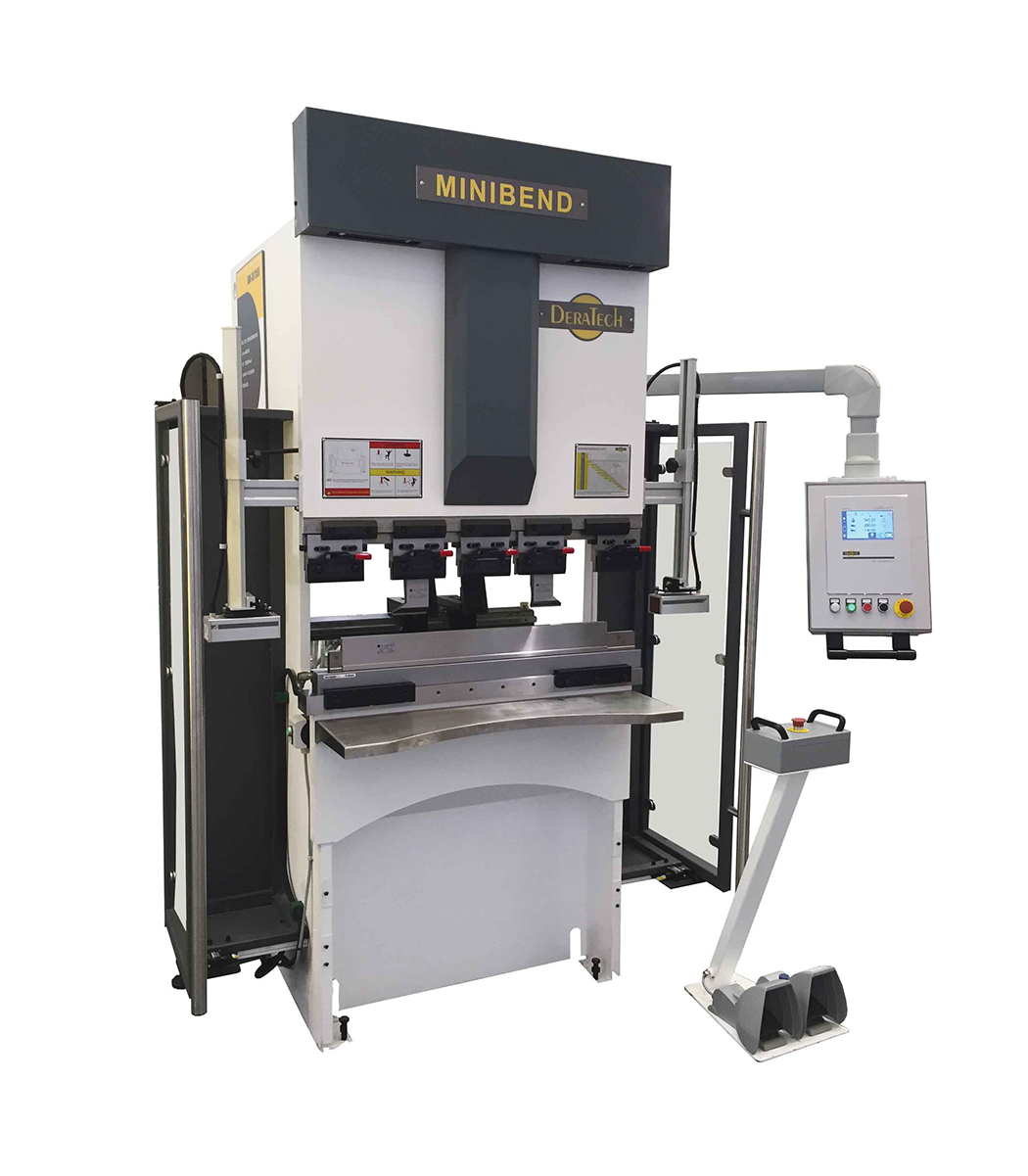

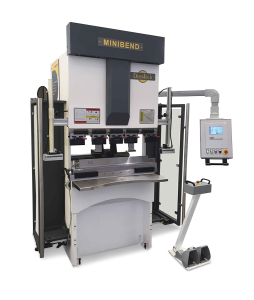

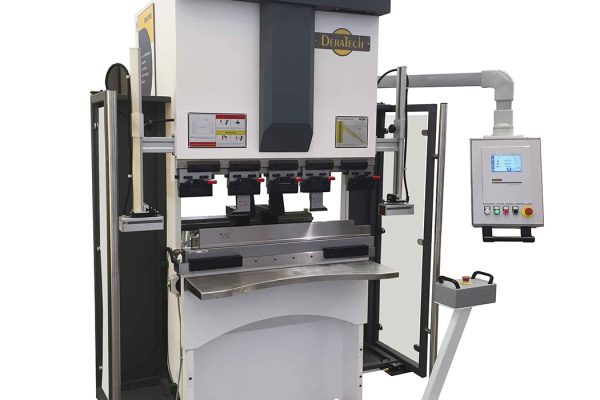

The Ultima Minibend is a good example of efficient interaction between operator and machine.
Ultima Minibend is designed to provide optimal working conditions and a user-friendly environment, ensuring high productivity at every stage. Its ergonomic design includes a movable foot pedal, pivoting control panel, and seated or semi-seated operation, with a machine frame adaptable to operator needs.

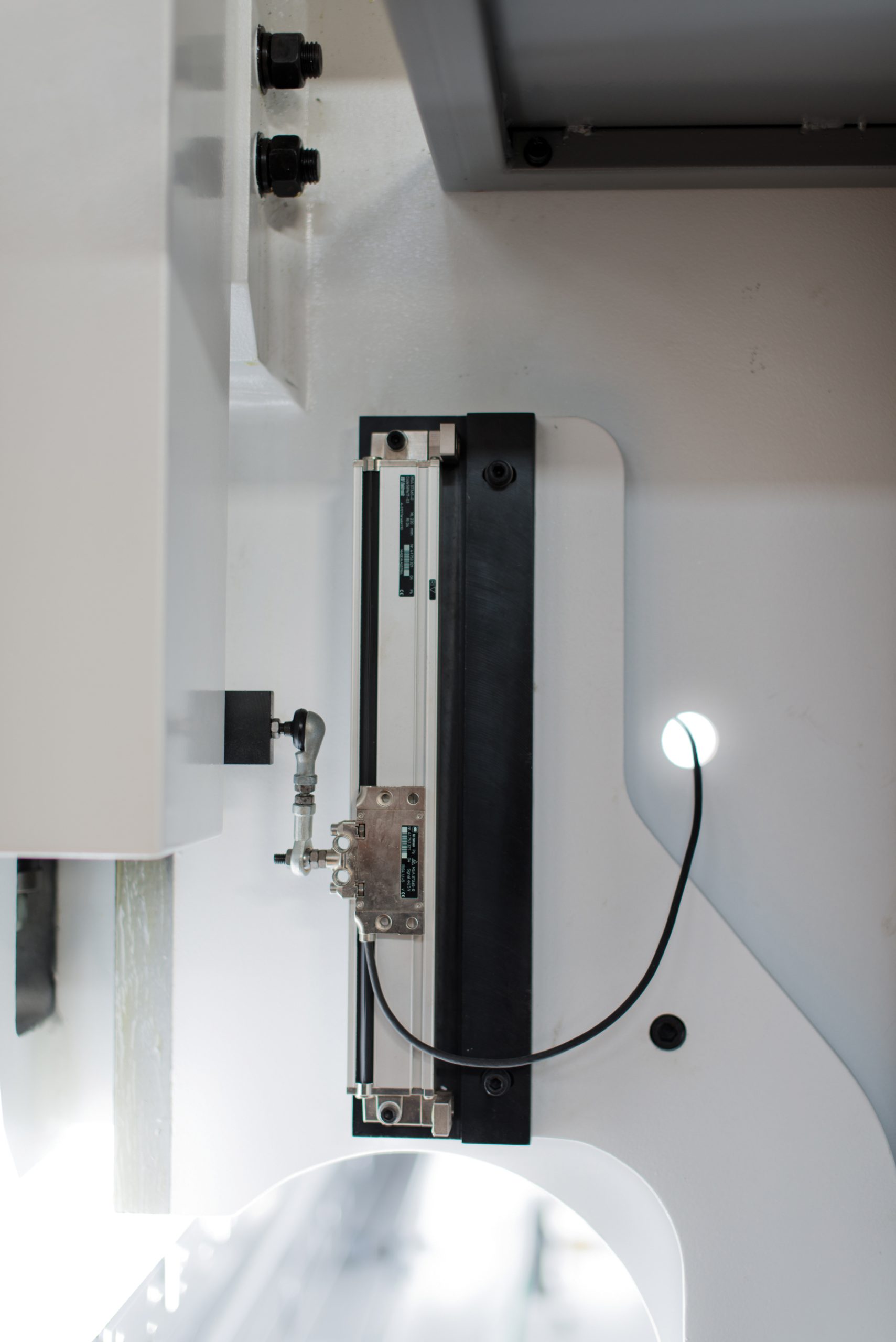

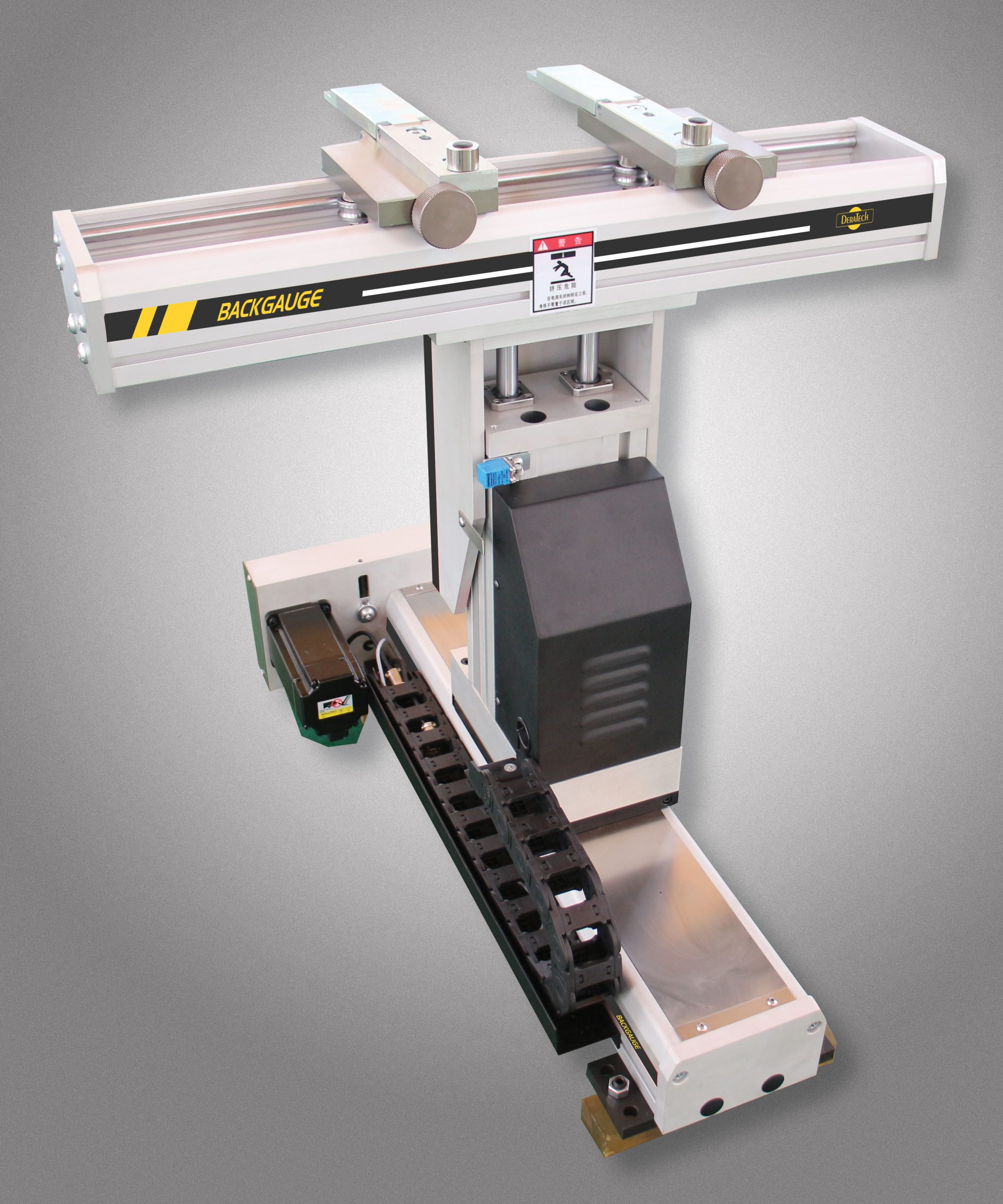

This single-cylinder hydraulic press brake features a torsionally stiff welded frame and high-precision linear guides, enabling efficient production of small parts. It is available with a 1020 mm bending length and 30-ton bending force. The CNC-controlled X/R back gauge with manual finger adjustment ensures accuracy and flexibility.
Ultima Minibend is ideal for producing components for electrical equipment, medical
Available in 35 or 50 tons with bending lengths from 1020 mm up to 1650 mm, the machine can be operated sitting or standing, providing flexible and ergonomic working conditions.

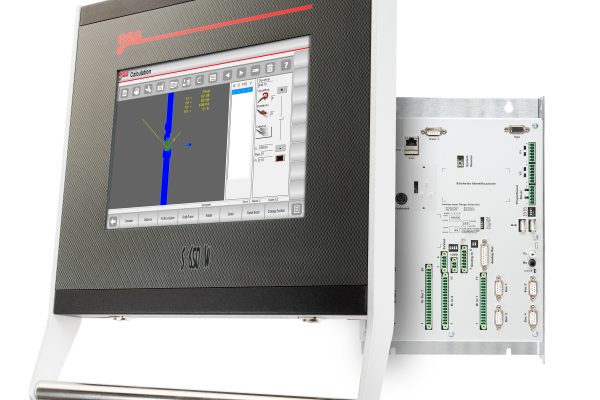

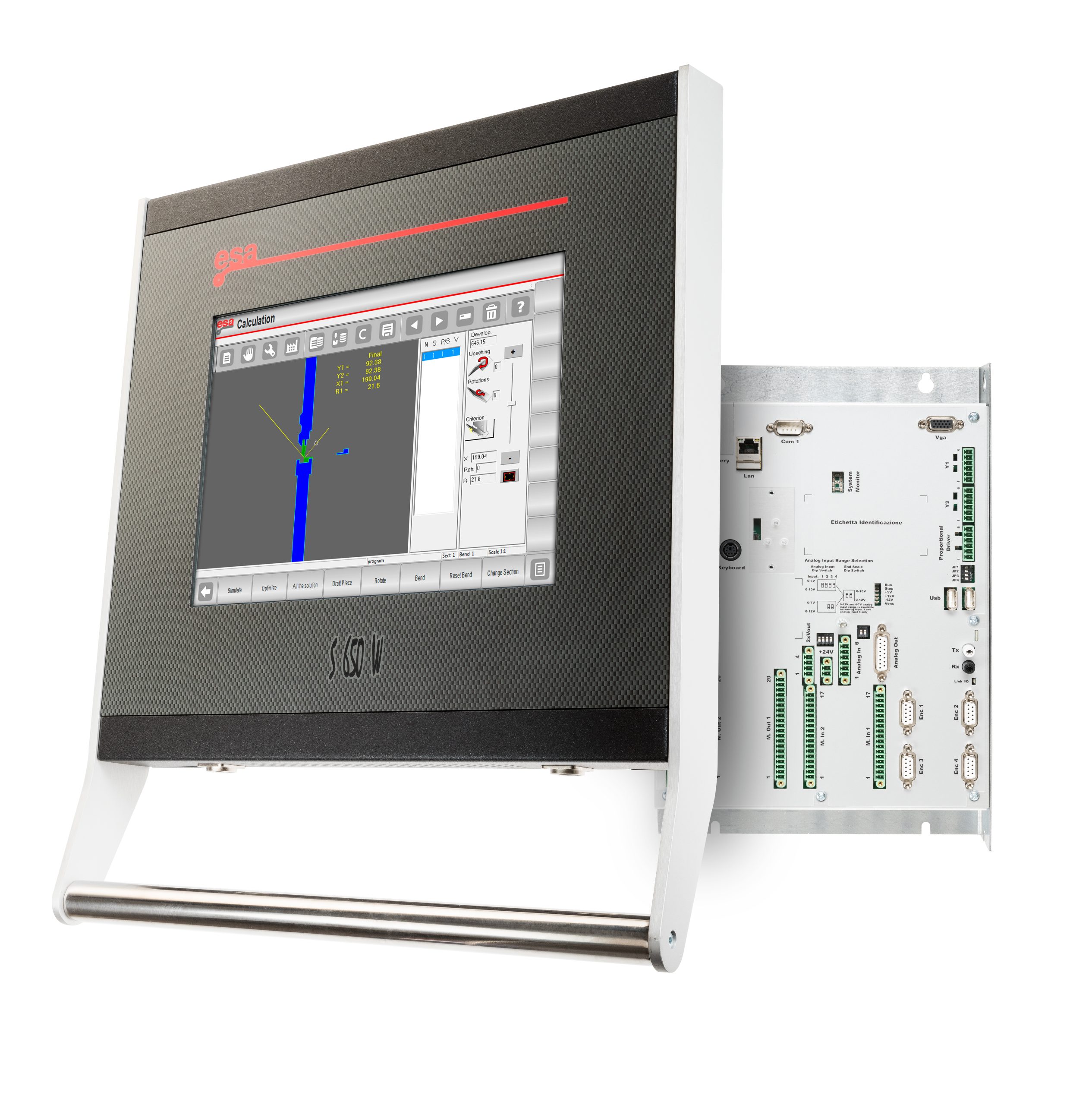

It is equipped with an E-drive or Hybrid system and a touch-screen ESA 650 CNC controller with a correction database, offering extremely fast operation thanks to high fall-down and bending speeds, as well as remote assistance for efficient support.

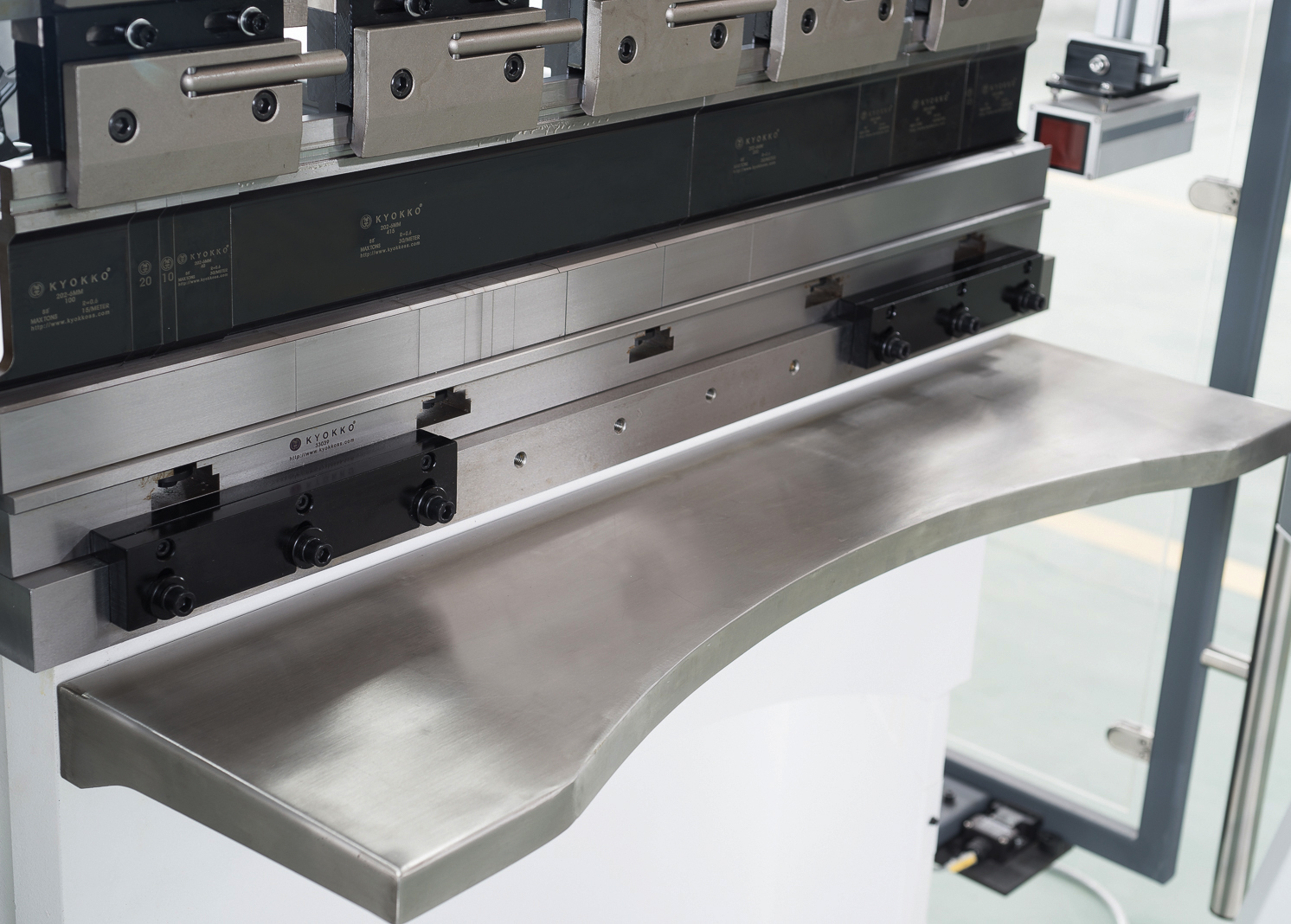

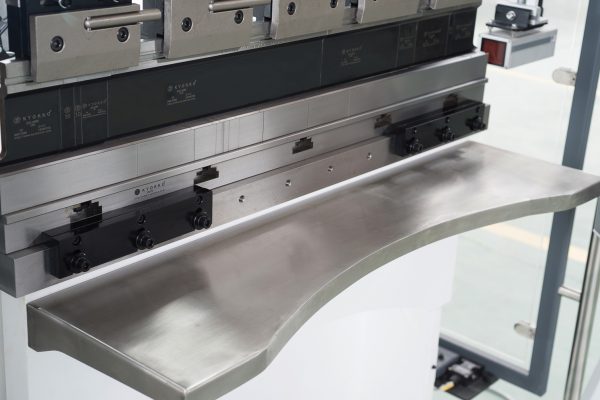

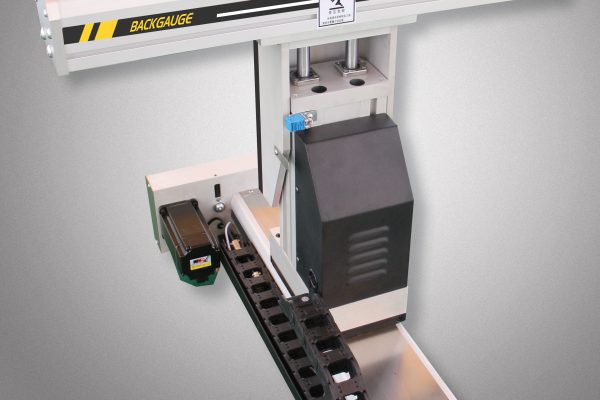

The system includes automatic angle and thickness measurement, CNC-controlled bending aids, automatic hemming, and a servo-driven moving table for high accuracy. A 6-axis backgauge with pneumatic support, barcode scanner, 3D control, and hybrid hydraulic system ensure flexible and efficient operation.
It supports ESA, DELEM, or Cybelec controllers and is equipped with Lazersafe safety light guards with a safety controller for maximum protection.
Detailed Specifications
Technical information
- 35 or 50 ton
- 1020mm up to 1650mm
- Can be used sitting or standing
- Available with E-drive or Hybrid system
- Touch Screen cnc-controller ESA 650
- Correction database
- Extremely fast working, due to high fall-down and bending speed
- Remote assistance
Available options
- 35 or 50 ton
- 1020mm up to 1650mm
- Can be used sitting or standing
- Available with E-drive or Hybrid system
- Touch Screen cnc-controller ESA 650
- Correction database
- Extremely fast working, due to high fall-down and bending speed
- Remote assistance
