Panel Bender
Automated panel bending for HMLV and mass production: high performance, every run
Salvagnini panel benders balance productivity and flexibility for both high-mix/low-volume and large-series sheet-metal fabrication. With universal tooling and automatic handling and bending cycles, each machine minimizes setup and operator intervention while ensuring repeatable quality on complex parts and variable materials. Integrated adaptive technologies such as MAC3.0, the proprietary bending formula, and a series of advanced sensors automatically compensate for variations in material and ambient conditions, eliminating waste and rework while keeping processes stable and consistent. From compact panel benders like the PX to fully automatic panel benders such as the P4, the range delivers high throughput and consistent angles with low energy consumption, helping contain operating costs.
Because bends remain consistent over time, downstream automated or robotized operations benefit directly: robotic welding, assembly, and finishing run faster, with fewer fixtures, less touch-up, and more stable cycle times. The result is a genuinely attractive total cost of ownership: lower energy and consumables, less changeover time, and a reduced cost-per-bend across both high-mix/low-volume and large-series production.
From smart panel bending to fully connected manufacturing

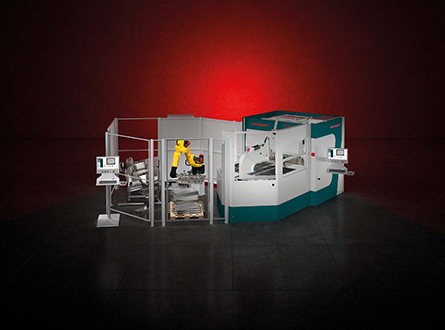

Every Salvagnini panel bender, regardless of model or automation level, operates as part of an intelligent production environment. Stand-alone automatic bending machines can be natively integrated via software with upstream and downstream work centers, exchanging real-time information and feedback with the factory ERP/MRP. In connected layouts, the same panel benders fit naturally into FSJ cells and S4+P4 FSL lines, supporting lights-out flows and minimizing through-times and WIP in a JIT logic that helps reduce inventories and improve cash flow. Industry 4.0 connectivity keeps workflows synchronized from batch-one to mass production, while options such as P-Robot extend automation for loading, handling, and bending across PX, P2, and P4 systems, scaling utilization without creating bottlenecks.
Product range
P4

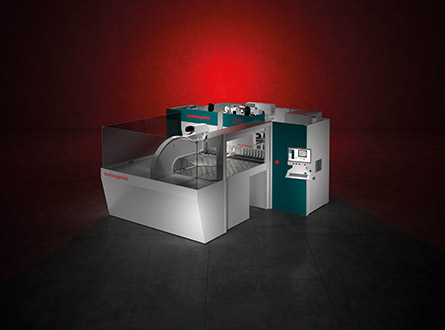

The P2 seduces with its high technological content, low energy consumption and compact layout, without forgetting the productivity and flexibility typical of Salvagnini panel benders.

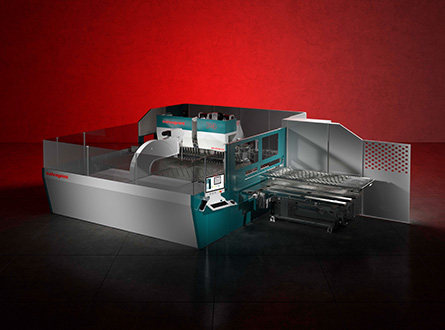

P4
The P4 amazes with its configuration potential and performance: productive and flexible, it can be independent, work in a flexible cell or be installed in an automatic factory.
P1
The L5 is a particularly high-performing laser with high dynamics on thin and medium-thin thicknesses.
P4
The P4 amazes with its configuration potential and performance: productive and flexible, it can be independent, work in a flexible cell or be installed in an automatic factory.
Operating mode: simple, quick and lean
Bending on each side of the sheet is achieved thanks to the controlled interpolated movements of the blades.
Flexible automation
Upper and lower blade, counterblade and blankholder are the four universal tools used to process the whole range of thicknesses and machinable materials, from 0.4 to 3.2 mm, during the cycle and without machine down times or manual re-tooling.
Proprietary bending formula
Developed over the years, the bending formula defines the force and manages the movements of the universal tools, analyzing different parameters in real time, including deflections, temperature and thickness, guaranteeing the precision, repeatability and quality of the finished product.
Automatic manipulator: fast and accurate
Quickly and fully automatically, this moves, handles, grips and rotates the sheet metal throughout the whole machining cycle. It requires no manual interventions during the cycle. The operator positions the sheet metal on the worktable and collects the product after bending, performing only the loading and unloading operations.
MAC3.0
MAC3.0 detects any differences in the mechanical characteristics of the material compared to their nominal value during the cycle, adapting the movements of the bending unit and the manipulator to compensate them.
