Fiber Laser Cutting

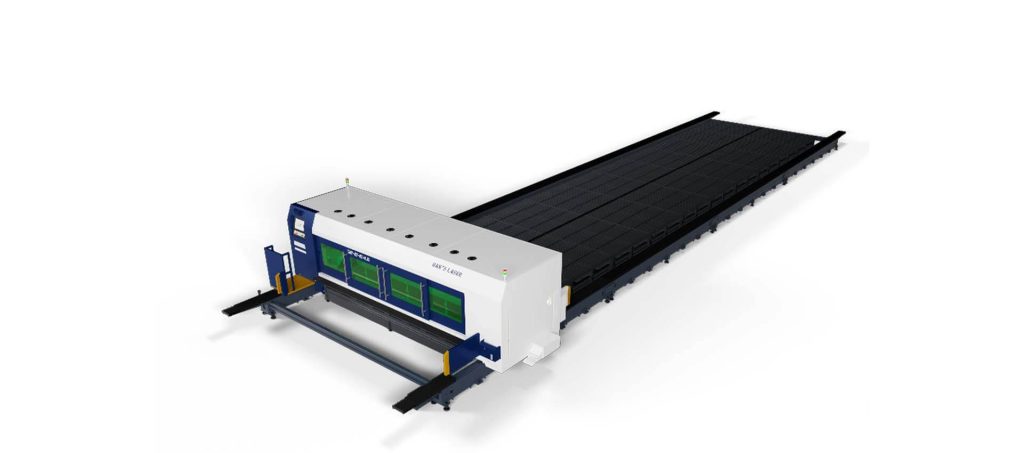

Ultra Large Format Laser Fiber Cutting Machine
This dual-drive gantry laser cutter combines precision mechanics with ytterbium-based fiber laser technology, achieving 35% electro-optical efficiency for low-cost 24/7 operation. The optimized drive structure ensures stability through balanced inertia-torque ratio, while modular semiconductor design enhances adaptability for continuous industrial production.
High-Efficiency Fiber Laser Cutting System
Low operating cost, high stability, and reliable performance.
Double-drive gantry ensures precise and smooth operation.
Designed for 24/7 continuous production with up to 35% energy efficiency.
Modular Cutting Platform

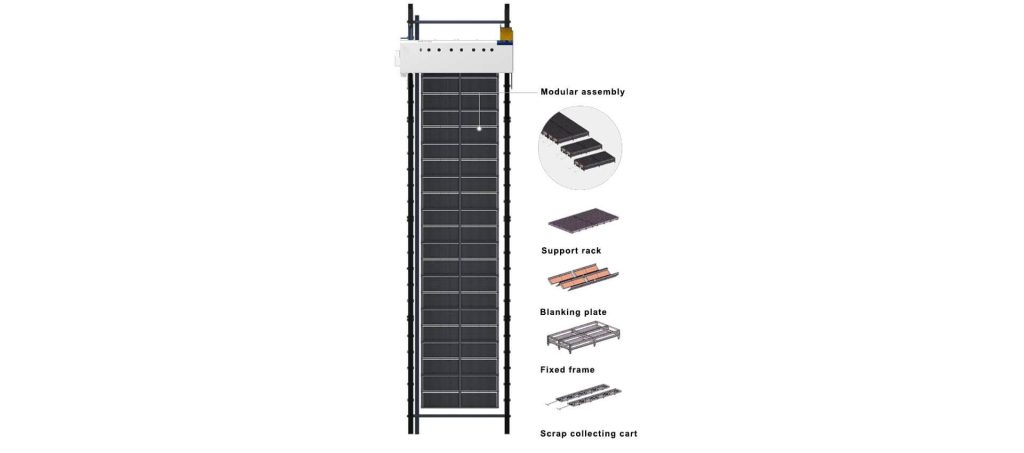

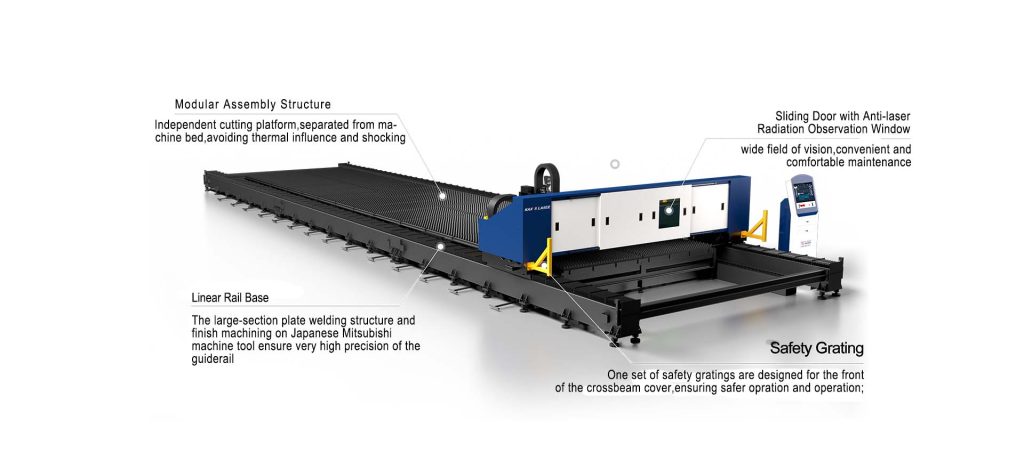

Modular assembly, the worktable is fully separated from the machine bed, avoiding the thermal effects of high power laser cutting and avoiding shocks and vibrations during loading and unloading.
Machine Bed
● It adopts high-rigidity and large-section structure, and the steel plate is bent and inlaid and welded. After optimization by finite element analysis (FEA), the internal horizontal and vertical are inlaid with welded ribs;

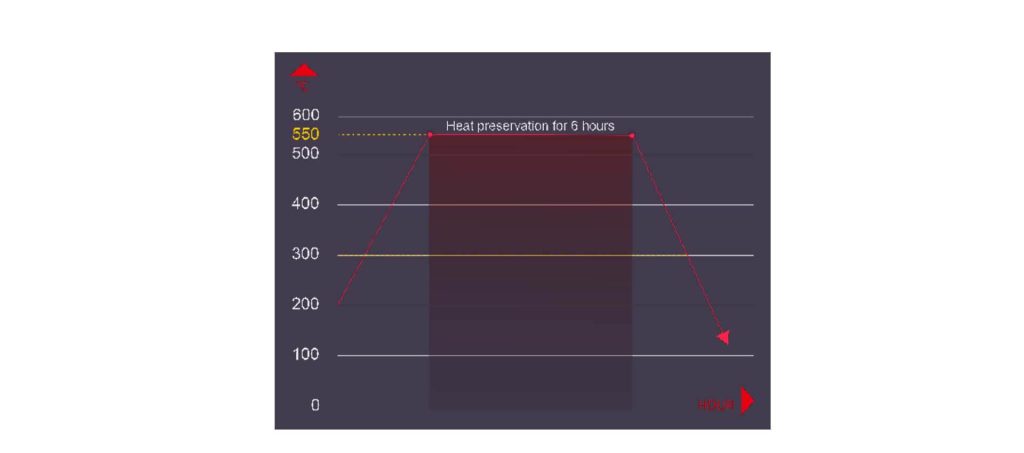

● Using high-quality steel, annealed, rough machined, vibration aged, finished with Japanese Mitsubishi machine tool, and finally precision butted;
● Thus ultimately ensuring a very high precision;
Machine Tool Protection
Emergency stop button switches are installed in prominent positions on both sides of the crossbeam, and mechanical switches are used to control the travel of each axis at both ends. At the same time, buffer devices are used to effectively ensure the safety of machine tool movement.
Extruded Aluminum Beams

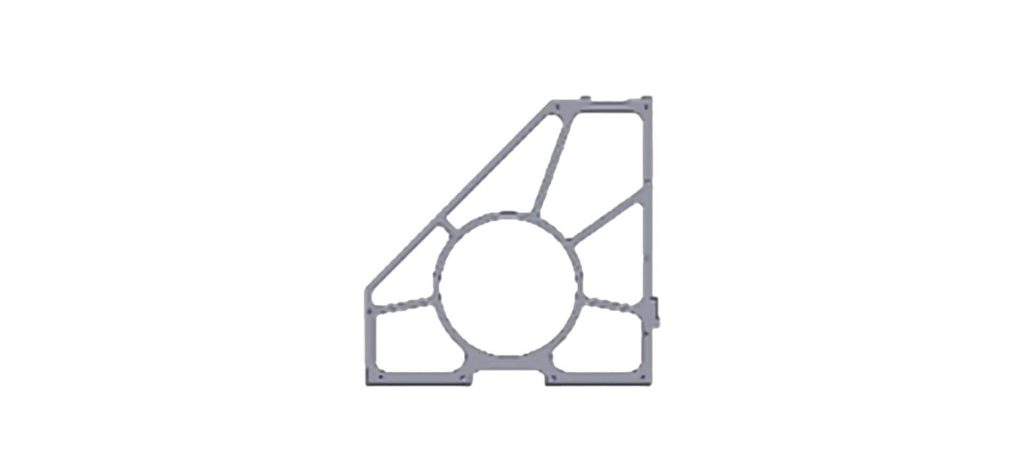

● When the format width is below 4.5m, a high-rigidity extruded beam is adopted, optimized through finite element analysis. The inner cavity is designed to effectively disperse internal and external stress, resulting in a lighter structure and improved dynamic performance ;
● The connection between the beam and pallet features an adaptive telescopic structure, ensuring long-term cutting stability across varying operating conditions;
Automatic Backlash Compensation

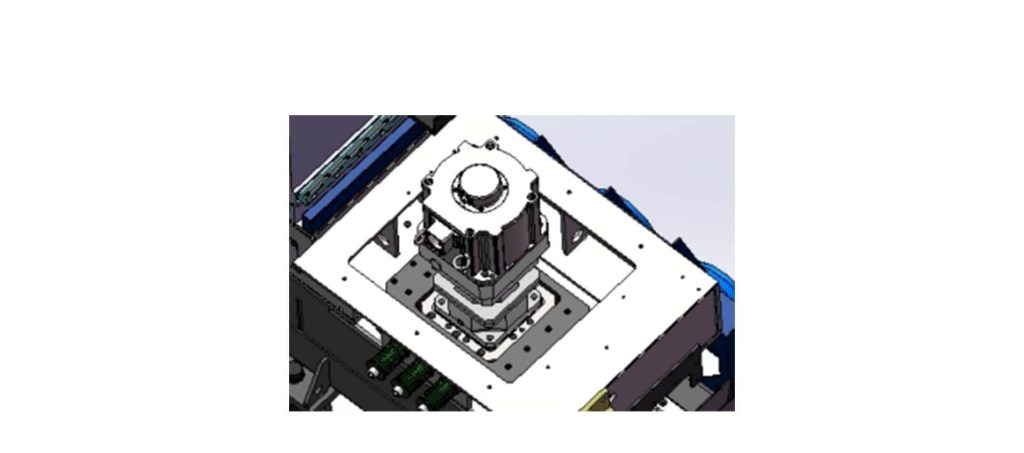

An automatic anti-backlash mechanism is integrated on both the left and right sides of the X-axis slide. This system ensures precise gear-rack engagement and resolves long-distance transmission accuracy challenges in large-format applications, enhancing positional stability across extended operational ranges.
Technical Data Sample
| Feature | Description |
|---|---|
| Operating Cost | Low cost with high stability and reliability |
| Machine Structure | Double-drive gantry for precise and smooth operation |
| Production Capability | Designed for 24/7 continuous operation |
| Energy Efficiency | Up to 35% electro-optical efficiency |
